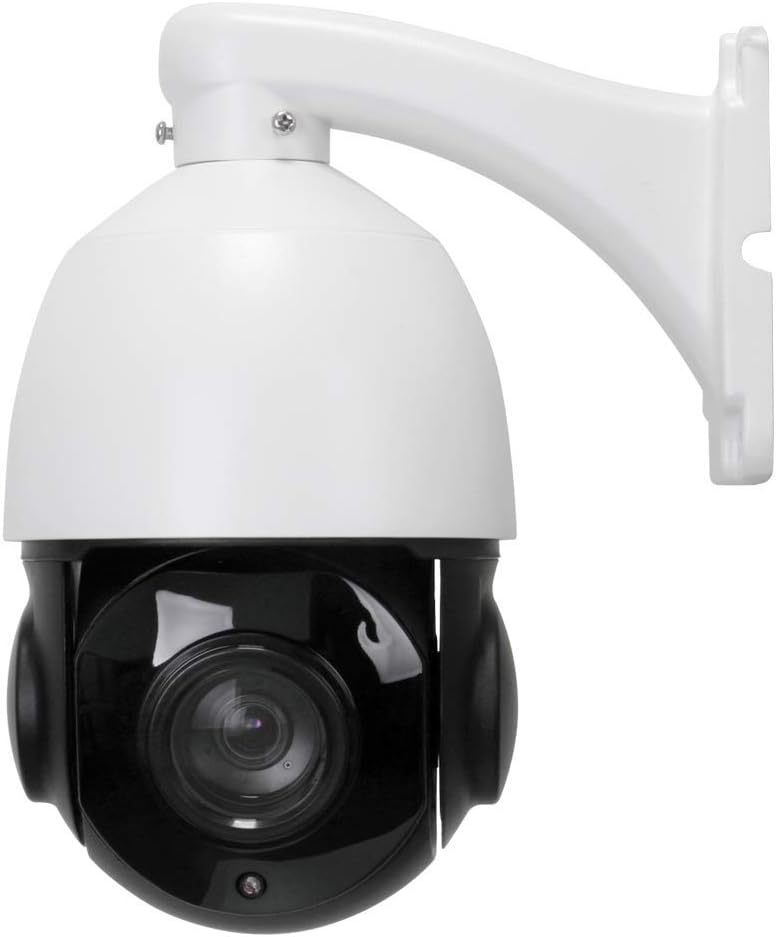

PTZ Outdoor Dome Camera 20x Optical Zoom Night Vision k7
PTZ Outdoor Dome Camera 20x Optical Zoom Night Vision k7
Four Video Format PTZ Camera with RS485 Control- The ptz camera transmit video signals(HD-CVI,HD-TVI,AHD and CVBS) to DVRs, XVRs via Coaxial cable while the ptz camera receive command by UTC function of the camera via Coax. In addition, the ptz camera could be controlled by an extra RS485 keyboard.
Integrated 2.0 Megapixel for Sony Image Sensor to provide 1080p Full HD or 4K video at 25fps. Adopt IP66 Full metal case with removable wall bracket allow it withstand bad weather outdoor and apply for different installation requirement high def image. Plus, powered by AC24V/2A function design make the power lead up to 263ft.
Full Coverage Pan Tilt Zoom Analog Camera- Heavy duty camera on motorized base can horizontal rotation 360°; 0.6°~30°/s, and vertical tilt 90°;4°~17°/s, 180° auto flip. Built-in 4.7~94mm camera len provides 20X Optical zoom, allow you zoom into fine details without video resolution lossing.
Excellent Infrared IR Installed - Equipped with 6pcs powerful IR LED array to reach 197ft long effective vision range at night. Adopt IR Cut Filter technology to auto switch Day/Night monitor mode, 24H/7D Surveillance.
Auto Monitor with Scheduled Path - The PTZ camera support 128 programmable presets, 4 tour sets,1 Pattern, AB Scan and Auto Pan. Perfect addition to HD CCTV system that covers blind spots.Lifetime technical support.
Features:
PTZ Camera Outdoor Infrared PTZ
Sony Image Sensor
Full HD Real Time Video at 25fps
HD-CVI HD-TVI AHD CVBS All in 1
4.7-94mm Lens, 20X Optical Zoom
60 meter of infrared night vision
360° Continuous rotation with auto-flip
IR cut filter (ICR)
128 Programmable Presets
1 Pattern and 4 Patrols
RS485 connection for Pelco-D and Pelco-P
IP66 weatherproof rating for outdoor use
Wall Mount design
24V AC Power Input
BNC Video output
Package Dimension: 280x280x225MM
Weight 4.0KG
Technical:
Thanks to Sony Image Sensor,the camera provide colourful image in star light condition until you turn on the night vision function.And it is black and white without any light in the camera area in automation night vision model.
The camera controlled by the preset calling.You can turn on/off night vision and automation night vision. Please download the user's manual via QR code in the package for more detail information.
The Camera support both coaxial cable control and RS485 control, hence it could receive commands from both UTC function of DVRs and RS485 keyboard.
Note:It does not support COAX for HD-CVI format from UTC, please use a RS485 keyboard to control the camera. Contact us for PTZ keyboard information.
Note: The standard AC 24V/2A power supply with extension function in the market is what it is in our package. The black and Red copper wire and a AC power plug come with a black and Red copper wire on the other end. An extension cable(the cable would be up to 315 inch) could be connected between. And the black wire of the camera connect to the black wire of the plug and the red one to the red on the plug. Then it works.
What's Included:
PTZ Speed Dome
24V AC Power Supply
Scan Code for Manual
